ASS SAVERS WIn WIng Mudguard - Gravel - Special Stealth Edition
ASS SAVERS WIn WIng Mudguard - Gravel - Special Stealth Edition
Couldn't load pickup availability
The Win Wing Gravel fits practically any gravel bike, protecting the rider in even the worst conditions. No matter the terrain, on-road or off, the Win Wing won't rattle or jam, and with only 72g, you won't even notice it's there
The Win Wing catches the spray by shielding the upper rear quarter of the wheel, protecting your critical areas (thighs, butt and back) and drastically increase your comfort
Full backside rider protection from the knee and up
Attaches in seconds to every bike, requires no tools
Ultra-lightweight at 72 grams
Suitable for tire widths up to 60 mm
The making of Win Wing from Ass Savers on Vimeo.
Specifications:
Measures: 375 x 85mm
Weight: 72g
Material: Blade - 0.9 mm PP (Polypropylene),Wishbone holder - glassfiber reinforced PA (Polyamid or Nylon) and Strap - TPU (thermoplastic polyurethane)
Tangential Coverage
The key to understanding how the Win Wing works lies in physics: water and mud leave the wheel in a straight line from the tangential point of release. By shielding only the upper rear quarter of the wheel, the Win Wing eliminates spray from reaching the critical areas of the rider with a minimum of material
Mount right, mount tight

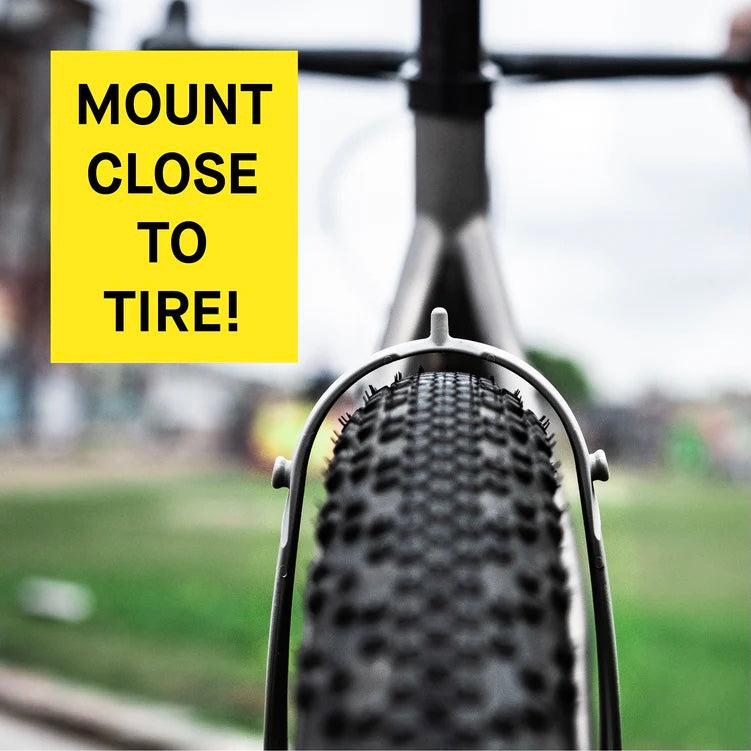

For the Tangential Coverage to work properly, the mudguard needs to be installed very close to the wheel. Aim for 5-10 mm tire clearance for maximum coverage
The right angle
Just as important as a tight fit is the angle of the blade. There are three different settings to compensate for the angle of your seat stays. Choose the one that allow a horizontal or a tail-up position. Avoid a tail-down angle as this will reduce the efficiency of the fender
Strap it hard
The straps are made from ultra-tough TPU and should be pulled as tight as you can comfortably do by hand. If you experience that the mudguard is not stable, try to use the next hole in the strap
Anti-Jam
As sturdy as it is, the design of the Win-wing allows it to flex in case of an accident and it's constructed to not jam in case of large chunks of nature get stuck to your wheel
Anti-Theft
If you like to keep it attached to your bike permanently, the Win-Wing can be secured to your bike with a standard zip tie, through a designated slot, making it easier to resist for people with sticky fingers
Reliable
Thanks to it's sophisticated simplicity and careful choice of materials, the Win Wing is virtually indestructible. With only four components (competitors use as much as 40 components) it's not that much that can go wrong. The glassfiber reinforced wishbone holder is both flexible and tough and the rubber straps are virtually indestructible
Pre-folding
The secret to transforming a flat piece of plastic into a functioning mudguard lies in the pre-folding prior to use. All the scoring lines have been carefully engineered to achieve locking mechanisms, self centering abilities, spring loading and material endurance. Please take the time to properly read the instructions/see the instruction video to ensure the best performance
Sustainability
The black blade is made from 80% recycled PP and the Win Wing has been designed for efficient shipping and easy recycling. Each component can be purchased separately, making repairing and upgrading convenient. The Win-Wing is 100% Made in Sweden in ISO 14001 certified factories
